The Moku Lock-in Amplifier supports dual-phase demodulation (X/Y or R/θ) from DC to 600 MHz. It also features an integrated two- or four-channel Oscilloscope and Data Logger, enabling you to observe signals at up to 1.25 GSa/s and log data at up to 10 MSa/s.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
The Moku Lock-in Amplifier is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.
Key benefits
From a built-in Data Logger and Oscilloscope to the ability to deploy multiple lock-ins for deeper insights, you can expect more from the Moku Lock-in Amplifier.
Dual-phase demodulation for enhanced measurement accuracy

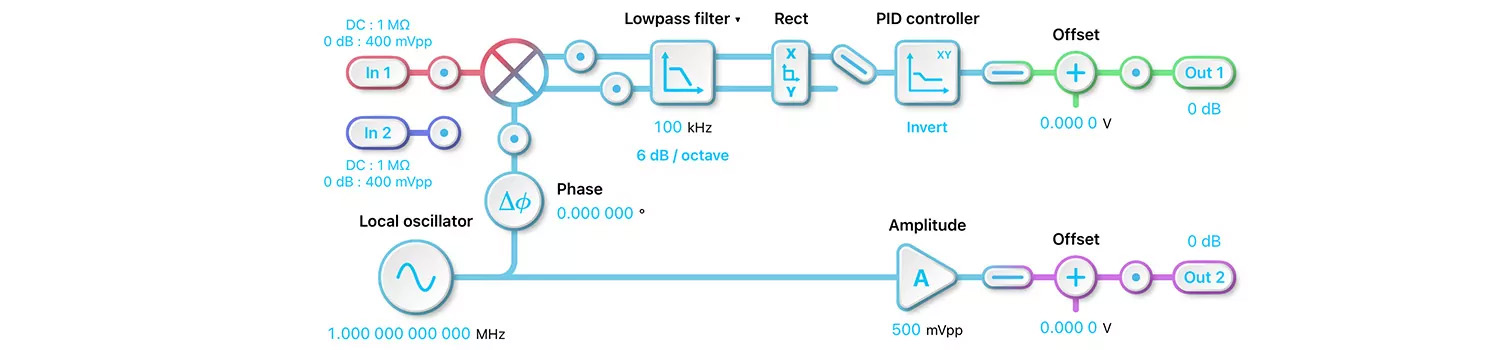

The Moku Lock-in Amplifier features a dual-phase demodulator with cascaded, single-pole lowpass filters to attenuate the second harmonic and suppress noise in each quadrature.
- Select between 6, 12, 18, and 24 dB / octave lowpass filter slopes
- Select between rectangular (X/Y) and polar (R/θ) coordinate modes

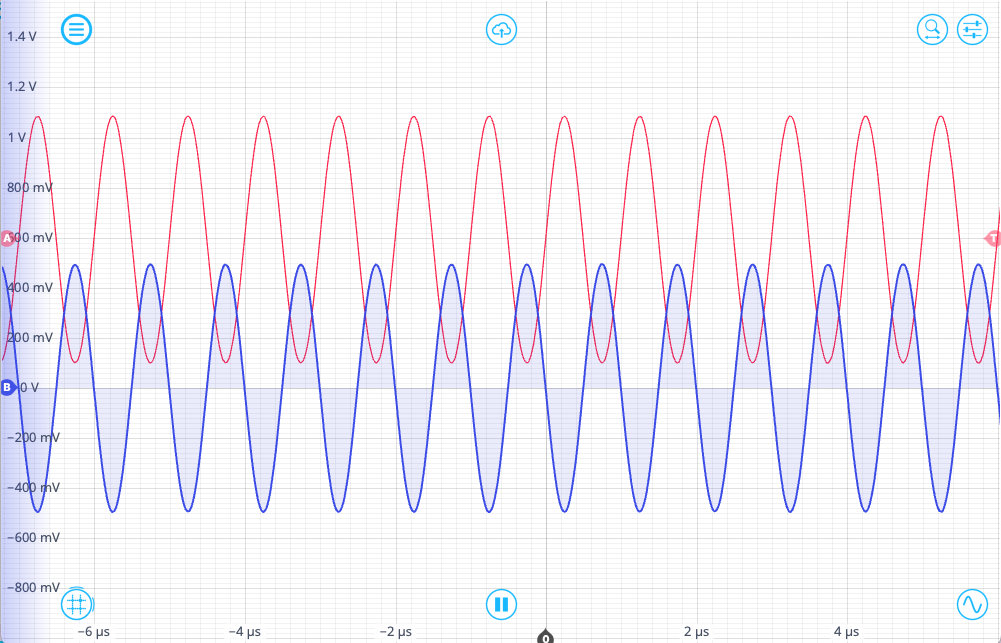

- View the demodulated in-phase and quadrature signals prior to the lowpass filters using the integrated Oscilloscope
Unlock greater insights with additional embedded instruments
Monitor up to four signals at a time using the Moku Lock-in Amplifier’s integrated 4-channel, 1.25 GSa/s Oscilloscope, and continuously log data at up to 10 MSa/s using its built-in Data Logger. Additionally, the integrated PID Controller provides real-time control over gain profiles with configurable saturation.
Internal and external references for maximum flexibility
Configure the local oscillator source to suit different applications. Select from internal or external demodulation references, or bypass the mixer stage altogether. Use the internal PLL frequency multiplier to demodulate up to the 250th harmonic or down to 0.125x of the fundamental frequency.
Measure more, instantly, from your preferred operating system
Wirelessly configure and monitor your setup’s performance from intuitive Moku software for iPad, Windows, or Mac applications. Moku software provides a clear and dynamic user experience so you can quickly configure, modify, and debug your setup.
Engineered to work seamlessly with your favorite APIs
API integration with MATLAB, LabVIEW, and more allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.
Engineered for demanding applications
You can’t innovate for the future when your test equipment is stuck in the past. Use the Moku Lock-in Amplifier to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
Analog
radio
Laser frequency
stabilization
Laser scanning
microscopy
Magnetic
sensing
Pump probe /
ultrafast spectroscopy
Integrates seamlessly with your tech stack
Moku:Go is not compatible with iPadOS
Tech specs and docs
The Moku Lock-in Amplifier runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application
Technical specifications
Channels
4
2
2
Demodulation frequency
1 mHz to 600 MHz
1 mHz to 200 MHz
1 mHz to 20 MHz
Dual-phase demodulation
X/Y or R/θ
X/Y or R/θ
X/Y or R/θ
Demodulation modes
Internal, external (direct local oscillator input or phase-locked loop with frequency multiplier from 0.125x to 250x), with the option to bypass the mixer stage
Internal, external (direct local oscillator input or phase-locked loop with frequency multiplier from 0.125x to 250x), with the option to bypass the mixer stage
Internal, external (direct local oscillator input or phase-locked loop with frequency multiplier from 0.125x to 250x), with the option to bypass the mixer stage
Dynamic reserve
> 120 dB
> 120 dB
> 100 dB
Filter time constant
From 12.8 ns to 0.215 s
From 32 ns to 0.537 s
From 128 ns to 2.15 s
Input impedance
50 Ω / 1 MΩ
50 Ω / 1 MΩ
1 MΩ
Output gain range
-80 to +160 dB
-80 to +160 dB
-80 to +160 dB
Local oscillator output
Up to 600 MHz with variable amplitude
Up to 200 MHz with variable amplitude
Up to 20 MHz with variable amplitude
Documentation
Datasheets
User manuals
Moku:Pro
Lock-In Amplifier
Technical specifications
Channels
4
Demodulation frequency
1 mHz to 600 MHz
Dual-phase demodulation
X/Y or R/θ
Demodulation modes
Internal, external (direct local oscillator input or phase-
locked loop with frequency multiplier from 0.125x to
250x), with the option to bypass the mixer stage
Dynamic reserve
>120 dB
Filter time constant
From 12.8 ns to 0.215 s
Input impedance
50 Ω / 1 MΩ
Output gain range
-80 to +160 dB
Local oscillator output
Up to 200 MHz with variable amplitude
Documentation
Datasheets
Moku:Pro Lock-in Amplifier Datasheet
Moku:Pro Hardware Datasheet
User manuals
Moku:Pro Lock-in Amplifier User Manual
Moku:Lab
Lock-In Amplifier
Technical specifications
Channels
2
Demodulation frequency
1 mHz to 200 MHz
Dual-phase demodulation
X/Y or R/θ
Demodulation modes
Internal, external (direct local oscillator input or phase-
locked loop with frequency multiplier from 0.125x to
250x), with the option to bypass the mixer stage
Dynamic reserve
>120 dB
Filter time constant
From 32 ns to 0.537 s
Input impedance
50 Ω / 1 MΩ
Output gain range
-80 to +160 dB
Local oscillator output
Up to 200 MHz with variable amplitude
Documentation
Datasheets
Moku:Lab Lock-in Amplifier Datasheet
Moku:Lab Hardware Datasheet
User manuals
Moku:Lab Lock-in Amplifier User Manual
Moku:Go
Lock-In Amplifier
Technical specifications
Channels
2
Demodulation frequency
1 mHz to 20 MHz
Dual-phase demodulation
X/Y or R/θ
Demodulation modes
Internal, external (direct local oscillator input or phase-
locked loop with frequency multiplier from 0.125x to
250x), with the option to bypass the mixer stage
Dynamic reserve
>100 dB
Filter time constant
From 128 ns to 2.15 s
Input impedance
1 MΩ
Output gain range
-80 to +160 dB
Local oscillator output
Up to 20 MHz with variable amplitude
Documentation
Datasheets
Moku:Go Lock-in Amplifier Datasheet
Moku:Go Hardware Datasheet
User manuals
Moku:Go Lock-in Amplifier User Manual
