Choose from three versatile options: Moku:Pro for technology development,
Moku:Lab for research, or Moku:Go for a portable design and test solution.

Pro

Lab

Go

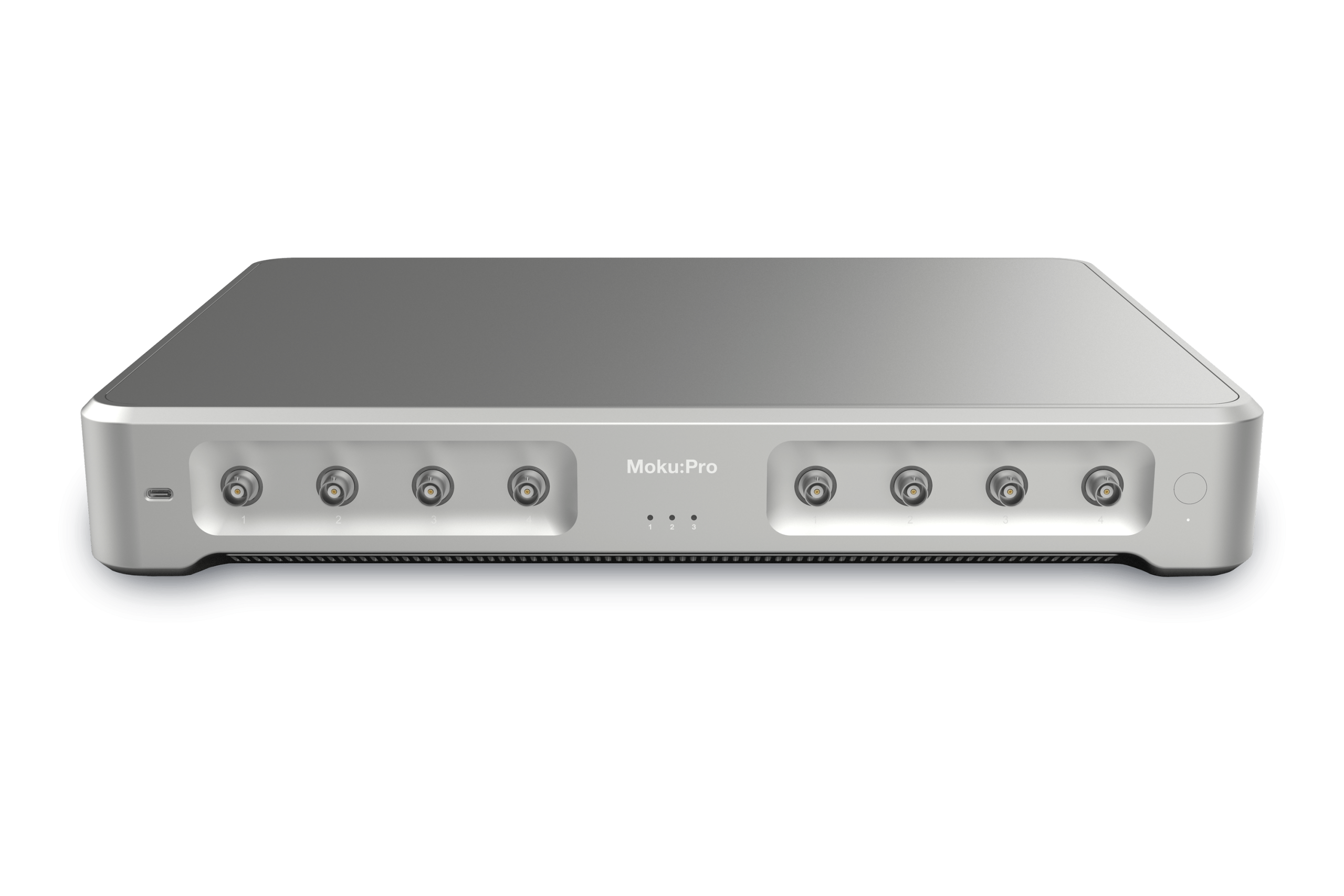

Moku:Pro

Configure

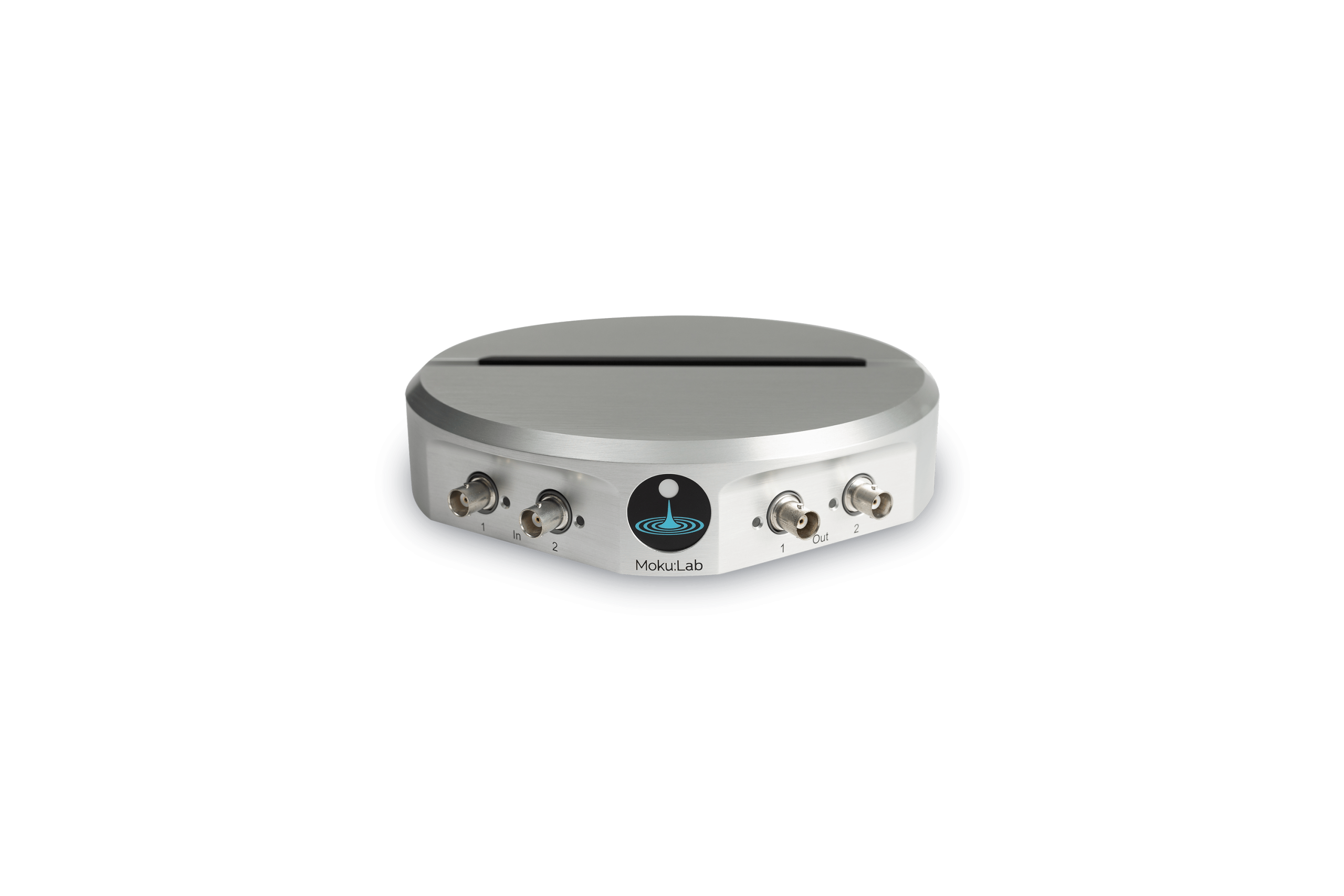

Moku:Lab

Configure

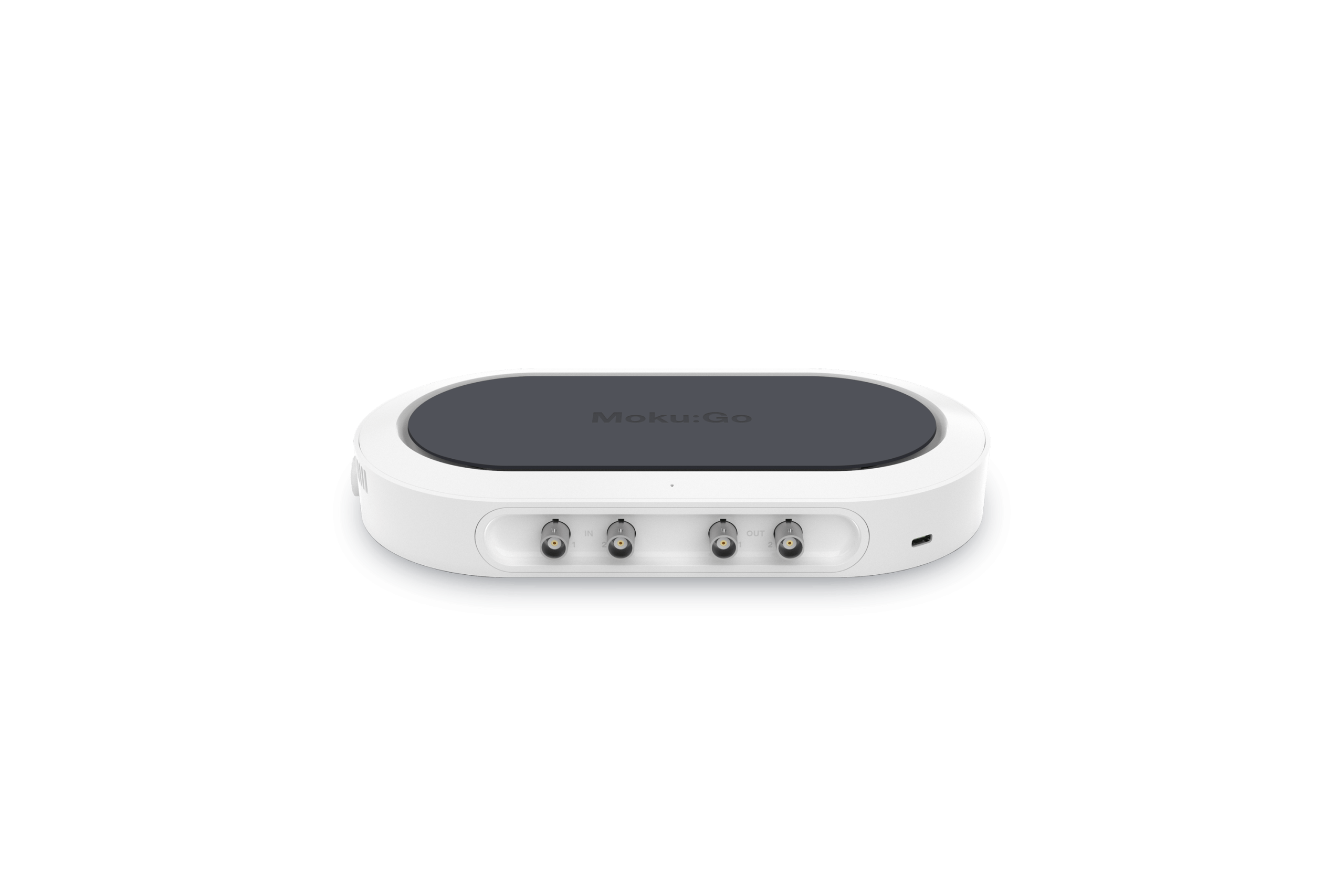

Moku:Go

Configure

Technical Specifications

Analog inputs

Input channels

Four 10-bit+18-bit, up to 5 GSa/s

Two 12-bit, 500 MSa/s

Two 12-bit, 125 MSa/s

Analog bandwidth

600 MHz

200 MHz

30 MHz

Impedance

AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

AC or DC coupling with 1 MΩ impedance

Input range

Up to ± 20 V

Up to ± 5 V

Up to ± 25 V

Analog outputs

Output channels

Four 16-bit, 1.25 GSa/s

Two 16-bit, 1 GSa/s

Two 12-bit, 125 MSa/s

Analog bandwidth

500 MHz

300 MHz

20 MHz

Output range

± 5 V into 50 Ω

± 1 V into 50 Ω

± 5 V into 50 Ω

Digital I/O

Dedicated TTL trigger port

Dedicated TTL trigger port

16-channel DIO at 125 MSa/s
Supports 3.3 V logic (5 V tolerant)

Programmable power supply

N/A

N/A

Up to four channels

Software and utilities

iPadOS app
Windows, macOS apps
API support for Python, MATLAB, and LabVIEW

iPadOS app
Windows, macOS apps
API support for Python, MATLAB, and LabVIEW

Windows, macOS, iPadOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks live scripting

Additional ports

USB-C
10 MHz reference clock in and out
Ethernet port

USB Mini B
SD card slot
10 MHz reference clock in and out
Ethernet port
Kensington lock port
Trigger

USB-C
Magnetic power port
Optional Ethernet port
Kensington lock port
Trigger

Size and Weight

Dimensions

Height

2.8 in / 7 cm

1.7 in / 4.4 cm

1.5 in / 3.8 cm

Width

17.3 in / 44 cm

7.9 in / 20 cm

9.4 in / 24 cm

Depth

13 in / 33 cm

7.9 in / 20 cm

5.1 in / 13 cm

Weight

14.77 lb / 6.7 kg

3.5 lb / 1.6 kg

1.7 lb / 750 g

See more

Store

Choose from three versatile options: Moku:Pro for technology development,Moku:Lab for research, or Moku:Go for a portable design and test solution.

Technical Specifications

Analog Inputs

Input channels
Four 10-bit+18-bit, up to 5 GSa/s

Analog bandwidth
600 MHz

Impedance
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

Input range
Up to ± 20 V

Analog Outputs

Output channels
Four 16-bit, 1.25 GSa/s

Analog bandwidth
500 MHz

Output range
± 5 V into 50 Ω

Digital I/O
Dedicated TTL trigger port

Programmable power supply
N/A

Software and utilities
iPadOS app
Windows, macOS apps
API support for Python, MATLAB, and LabVIEW

Additional ports
USB-C
10 MHz reference clock in and out
Ethernet port

Size and Weight

Dimensions

Height
2.8 in / 7 cm

Width
17.3 in / 44 cm

Depth
13 in / 33 cm

Weight
14.77 lb / 6.7 kg

Technical Specifications

Analog Inputs

Input channels
Two 12-bit, 500 MSa/s

Analog bandwidth
200 MHz

Impedance
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

Input range
Up to ± 5 V

Analog Outputs

Output channels
Two 16-bit, 1 GSa/s

Analog bandwidth
300 MHz

Output range
± 1 V into 50 Ω

Digital I/O
Dedicated TTL trigger port

Programmable power supply
N/A

Software and utilities
iPadOS app
Windows, macOS apps
API support for Python, MATLAB, and LabVIEW

Additional ports
USB Mini B
SD card slot
10 MHz reference clock in and out
Ethernet port
Kensington lock port

Size and Weight

Dimensions

Height
1.7 in / 4.4 cm

Width
7.9 in / 20 cm

Depth
7.9 in / 20 cm

Weight
3.5 lb / 1.6 kg

Technical Specifications

Analog Inputs

Input channels
Two 12-bit, 125 MSa/s

Analog bandwidth
30 MHz

Impedance
AC or DC coupling with 1 MΩ impedance

Input range
Up to ± 25 V

Analog Outputs

Output channels
Two 12-bit, 125 MSa/s

Analog bandwidth
20 MHz

Output range
± 5 V into 50 Ω

Digital I/O
16-channel DIO at 125 MSa/s
Supports 3.3 V logic (5 V tolerant)

Programmable power supply
Up to four channels

Software and utilities
Windows, macOS, iPadOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks live scripting

Additional ports
USB-C
Magnetic power port
Optional Ethernet port
Kensington lock port

Size and Weight

Dimensions

Height
1.5 in / 3.8 cm

Width
9.4 in / 24 cm

Depth
5.1 in / 13 cm

Weight
1.7 lb / 750 g

Integrated instruments

Each FPGA-based Moku device allows you to replace multiple pieces of legacy test equipment with flexible, software-defined instrumentation. Learn more about the instruments available.
