Moku:Go Hardware

The complete undergraduate engineering solution for a four-year degree and beyond.

Moku:Go

The complete solution

Moku:Go is a complete engineering lab solution for students to actively learn key concepts from circuits to senior design. Designed to be carried in a backpack, Moku:Go features 8 instruments and optional programmable power supplies. It eliminates the need for bulky benchtop instruments and empowers students to learn wherever they are. An intuitive user interface (UI) is included for Windows and Mac, and API support integrates with the rest of your curriculum. We’ve thought of everything to ensure students have a complete experience for four years and beyond.

2 Inputs / 2 Outputs
30 MHz in / 20 MHz out, 125 MSa/s
Digital I/O
16 channels
Power Supply
2 or 4 channel options
WiFi Hotspot
Connectivity where you need it
Student using their Moku:Go

Unity between hardware and software

All Moku hardware is created based on software-defined instrumentation, and Moku:Go is no exception. It combines the signal-processing power of an FPGA with intuitive software to ensure students have access to all of the instruments they need on one platform.

Moku:Go fits in a backpack

The lab that fits in your backpack

Practical labs can take place uninterrupted whether students are in the classroom, in their dorm, or across the globe. With all eight instruments on one portable platform, any room can be a lab.

Moku:Go power supplies

Robust power supplies for any project

There’s no “one size fits all” solution in education. Moku:Go comes in 3 versions with varied power integration to ensure the perfect fit for your curriculum. Choose between no power supplies (M0), 2 channels (M1), or 4 channels (M2).

Output voltage and current levels:

• Channel 1: -5 V to +5 V, 0 to 150 mA
• Channel 2: 0 to +16 V, 0 to 150 mA
• Channel 3 & 4: 0.6 V to +5 V, 0.06 to 1 A

Students learning together on Moku:Go

Engineering for everyone

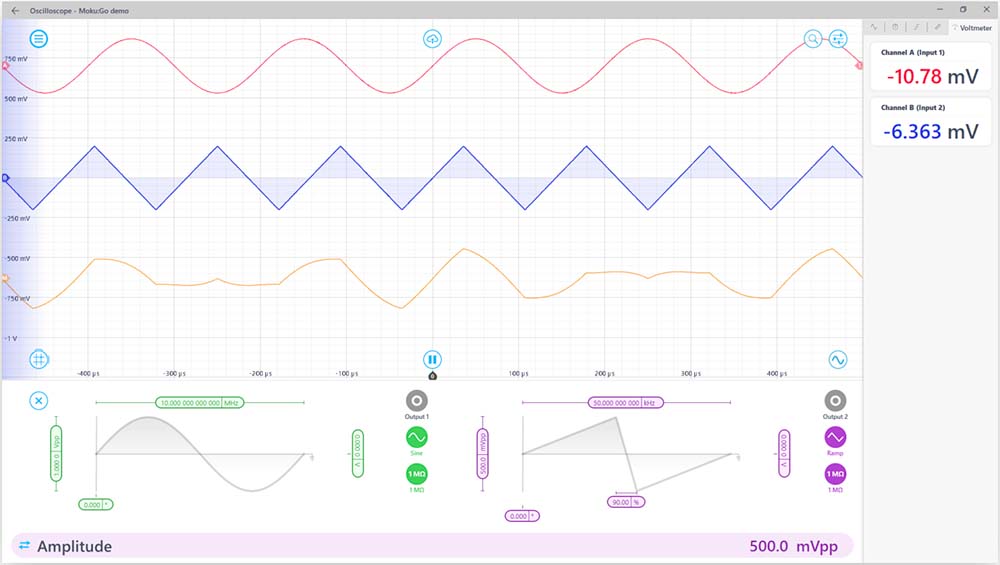

Student ownership is student empowerment. Students will begin their first year learning to use Moku:Go’s Oscilloscope, and finish their final year implementing the PID Controller for their senior design project. With a price comparable to a textbook and everything included, Moku:Go is opening doors for future engineers.

Moku:Go features a suite of eight instruments

Replace multiple instruments with a single device that has everything students need for a fraction of the cost.

Personalize your hardware

Pick from 6 colors so your Moku:Go is perfect for you. Place a volume order for custom color or school color options.

Pick your Moku:Go

Compare three different models and select the one that is perfect for your needs.
You can also contact our team with any questions.

Contact us for education volume pricing

Moku:Go M0

Programmable Power Supply

N/A

Included

All 8 instruments

2 oscilloscope probes

DIO cabling

Power adapter

USB-C cable

Ethernet

N/A

Dimensions

Weight

1.7 lb / 750 g

Moku:Go M0

Buy for $499

Moku:Go M1

Programmable Power Supply

Two-channel (back):

Channel 1:
Voltage -5 V to +5 V,
Current 0 to 150 mA

Channel 2:
Voltage 0 to +16 V,
Current 0 to 150 mA

Included

All 8 instruments

2 oscilloscope probes

DIO cabling

Power adapter

USB-C cable

3x power supply cables

Ethernet

N/A

Dimensions

Weight

1.7 lb / 750 g

Moku:Go M1

Buy for $549

Moku:Go M2

Programmable Power Supply

Four-channel (back):

Channel 1:
Voltage -5 V to +5 V,
Current 0 to 150 mA

Channel 2:
Voltage 0 to +16 V,
Current 0 to 150 mA

Channels 3 & 4:
Voltage 0.6 V to +5 V,
Current 0.06 to 1 A

Included

All 8 instruments

2 oscilloscope probes

DIO cabling

Power adapter

USB-C cable

6x power supply cables

Ethernet cable

Ethernet

Included (back)

Dimensions

Weight

1.7 lb / 750 g

Moku:Go M2

Buy for $599

Technical Specifications

Analog I/O

Analog inputs

  • Channels 2
  • Bandwidth 30 MHz
  • Sampling rate 125 MS/s per channel
  • Resolution 12-bit
  • Input range Up to ± 25 V
  • Input impedance 1 MΩ
  • Input coupling AC / DC

Analog outputs

  • Channels 2
  • Bandwidth 20 MHz
  • Sampling rate 125 MSa/s per channel
  • Resolution 12-bit
  • Output range Up to ± 5 V

Digital I/O

I/O

  • Channels 16
  • Sampling rate 62.5 MSa/s per channel
  • Logic level support 3.3 V (5 V tolerant)

Programmable Power Supply

Power supply

Two-channel

  • · Only available on M1 Model
  • · Output Voltage:
    • Channel 1: -5 V to +5V
    • Channel 2: 0 to +16 V
  • · Output Current:
    • Channel 1: 0 to 150 mA
    • Channel 2: 0 to 150 mA

Four-channel

  • · Only available on M2 Model
  • · Output Voltage:
    • Channel 1: -5 V to +5V
    • Channel 2: 0 to +16 V
    • Channel 3 & 4: 0.6 V to +5 V
  • · Output Current:
    • Channel 1: 0 to 150 mA
    • Channel 2: 0 to 150 mA
    • Channel 3 & 4: 0.06 to 1 A

Features & Accessories

Programming Environment

  • Python API support
  • MATLAB API support + Live Scripting
  • LabVIEW API support
  • Windows Standalone App
  • MacOS Standalone App

Additional Ports

  • USB-C Port 1
  • Magnetic Power Port 1
  • Ethernet Port Only available on M2 Model

Accessories

  • DIO Cable Assembly 1x
  • Oscilloscope Probes 2x
  • Power Supply Cables N/A for M0 Model, 3x for M1 Model, or 6x for M2 Model
  • Magnetic Power Cord 1x
  • Ethernet Cable 1x for M2 Model

Instruments
