Frequency Response Analyzer overview

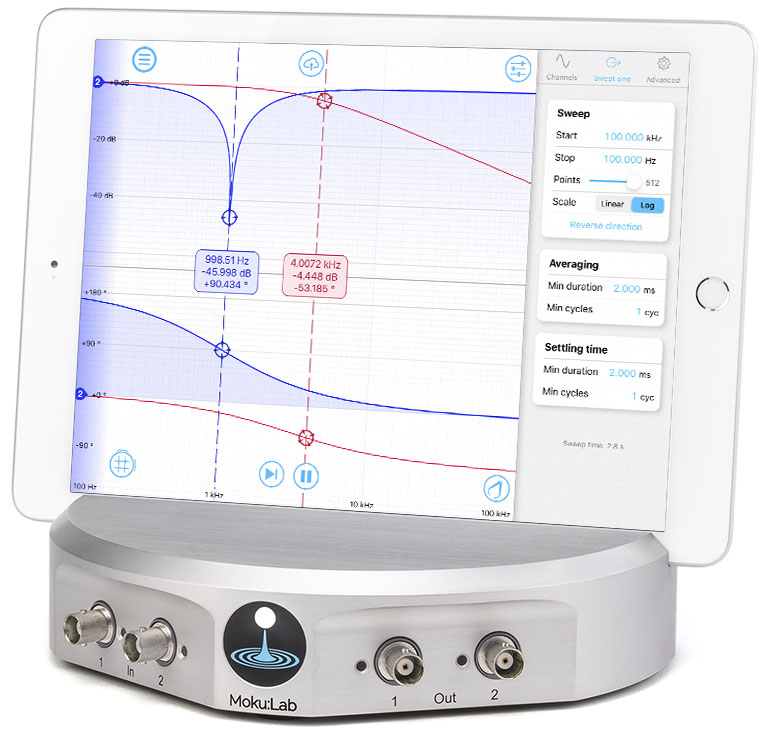

Moku:Lab’s Frequency Response Analyzer can be used to measure a system’s frequency response from 10 mHz up to 120 MHz.

Features


  • Linear or logarithmic swept sine output
  • Probe two systems simultaneously, or one system at two points
  • Math channel to add, subtract, multiply or divide response functions as they are acquired

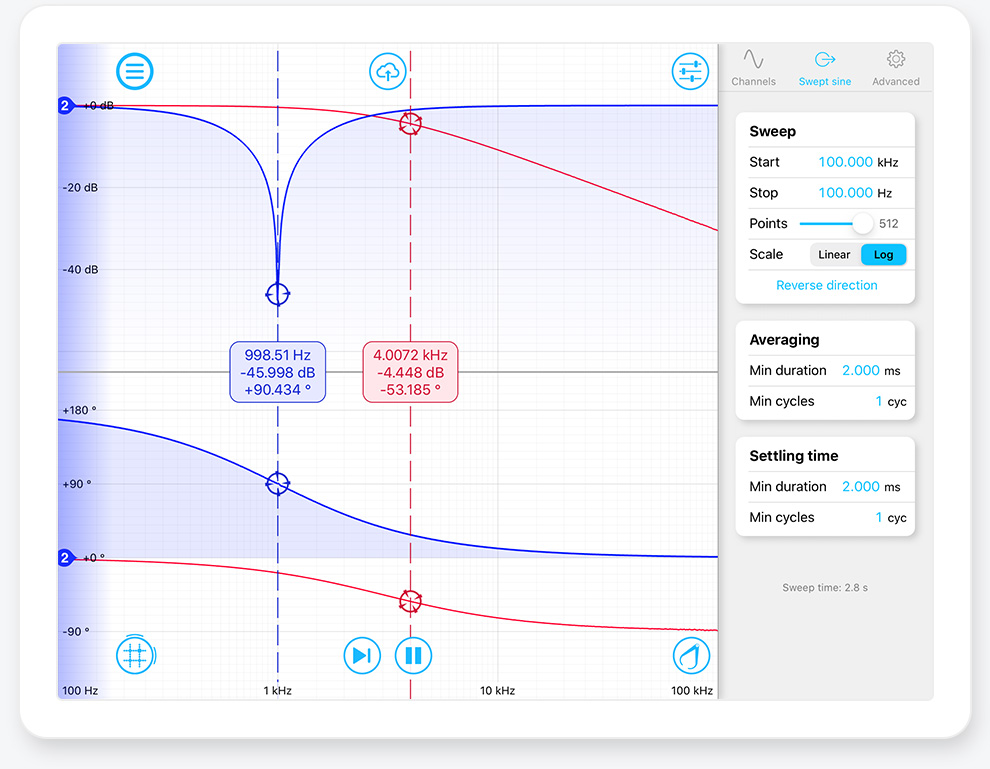

  • Monitor the magnitude and phase on the interactive Bode plot
  • Use cursors and markers to measure exact values on the plots
  • Precisely adjust settling and averaging time to suit device under test
  • Save a calibration trace to compare systems or remove spurious cable shifts
  • Easily save data and upload to the cloud

Specifications


  • Frequency range: 10 mHz to 120 MHz
  • 50 Ω / 1 MΩ input impedance
  • Variable averaging time (1 µs - 10 s)
  • Variable settling time (1 µs - 10 s)
  • Linear/logarithmic sweep
Download User Manual

Frequency Response Analyzer overview

Moku:Lab’s Frequency Response Analyzer can be used to measure a system’s frequency response from 10 mHz up to 120 MHz.

Features


  • Linear or logarithmic swept sine output
  • Probe two systems simultaneously, or one system at two points
  • Math channel to add, subtract, multiply or divide response functions as they are acquired
  • Monitor the magnitude and phase on the interactive Bode plot
  • Use cursors and markers to measure exact values on the plots
  • Precisely adjust settling and averaging time to suit device under test
  • Save a calibration trace to compare systems or remove spurious cable shifts
  • Easily save data and upload to the cloud

Specifications


  • Frequency range: 10 mHz to 120 MHz
  • 50 Ω / 1 MΩ input impedance
  • Variable averaging time (1 µs - 10 s)
  • Variable settling time (1 µs - 10 s)
  • Linear/logarithmic sweep
Download User Manual

Badge-AppStore.png Badge-Python.png Badge-MATLAB.png Badge-LabVIEW.png

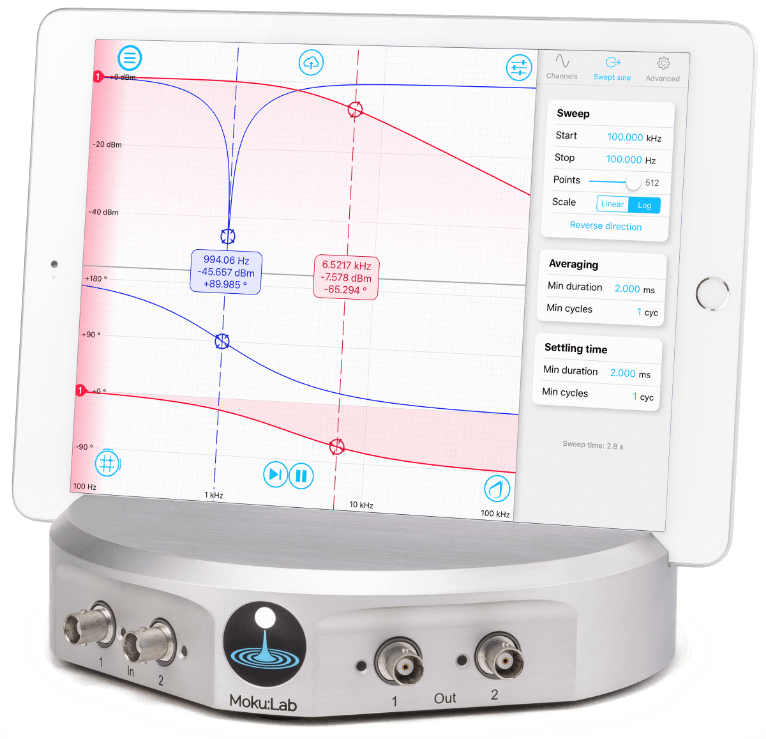

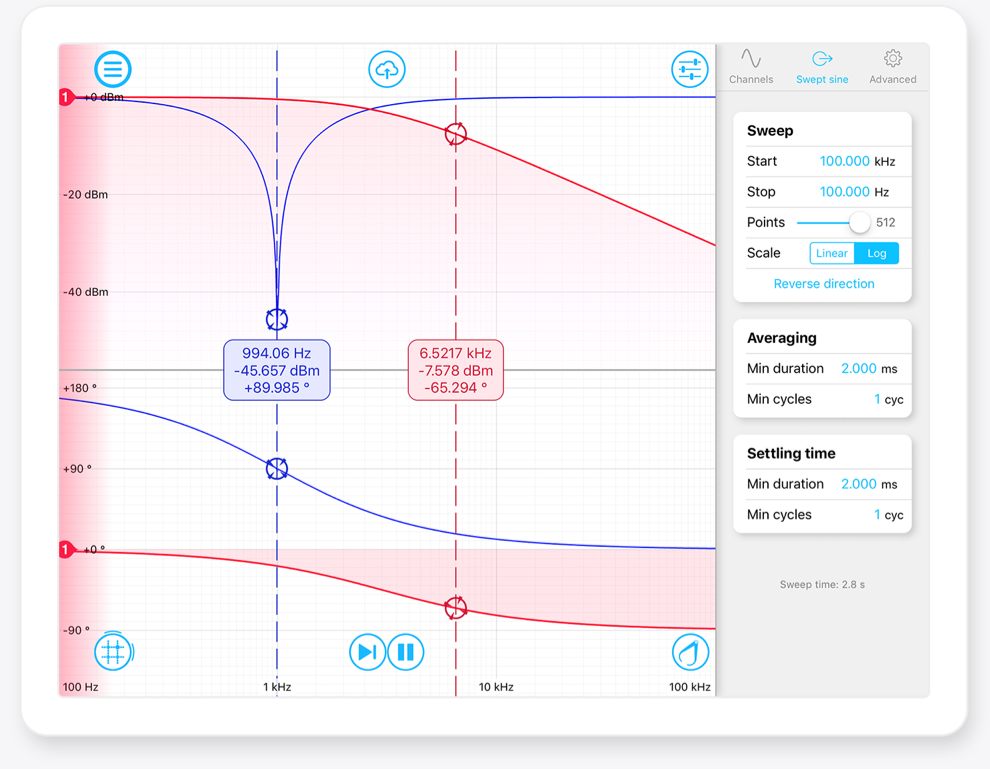

Wirelessly configure and monitor the magnitude and phase of your system’s transfer
function, all from an intuitive iPad interface, or with Python, MATLAB, and LabVIEW.


Badge-AppStore.png Badge-Python.png
Badge-MATLAB.png Badge-LabVIEW.png

Wirelessly configure and monitor the magnitude and phase of your system’s transfer function, all from an intuitive iPad interface, or with Python, MATLAB, and LabVIEW.

Measurements made easy

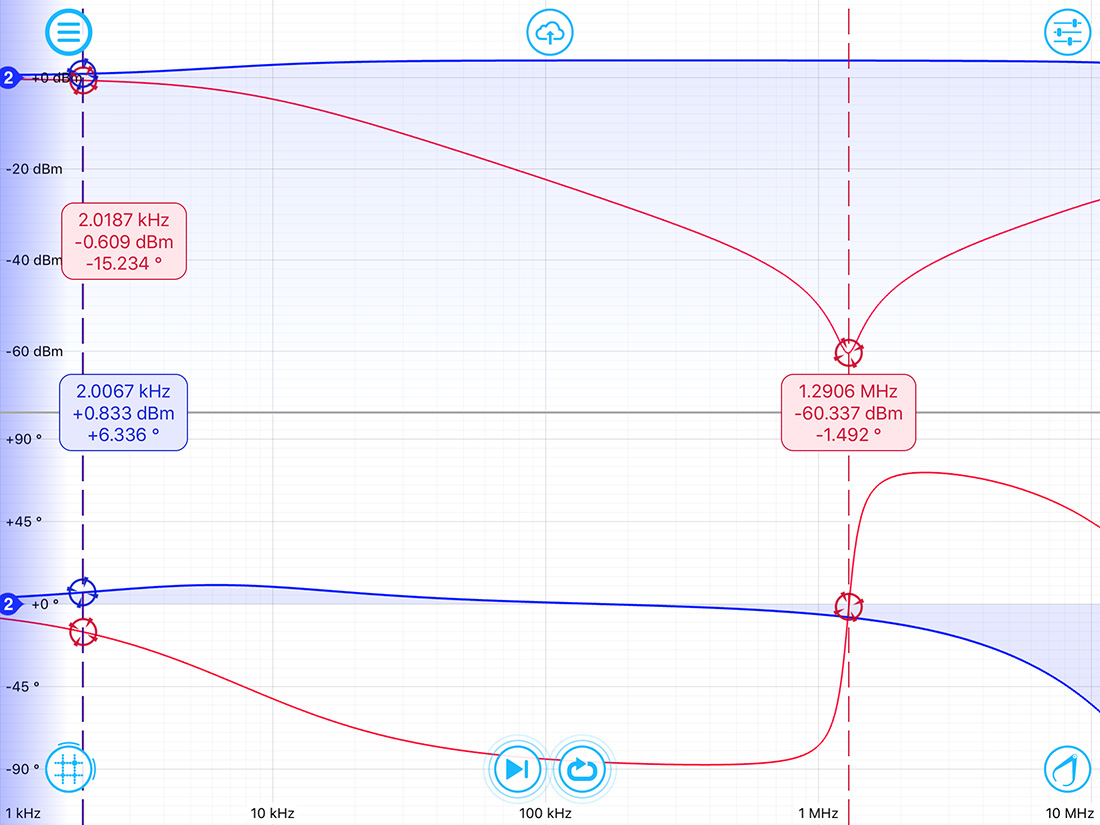

Quickly measure key features in your system’s magnitude and phase response with draggable cursors.

Fine tune your measurements

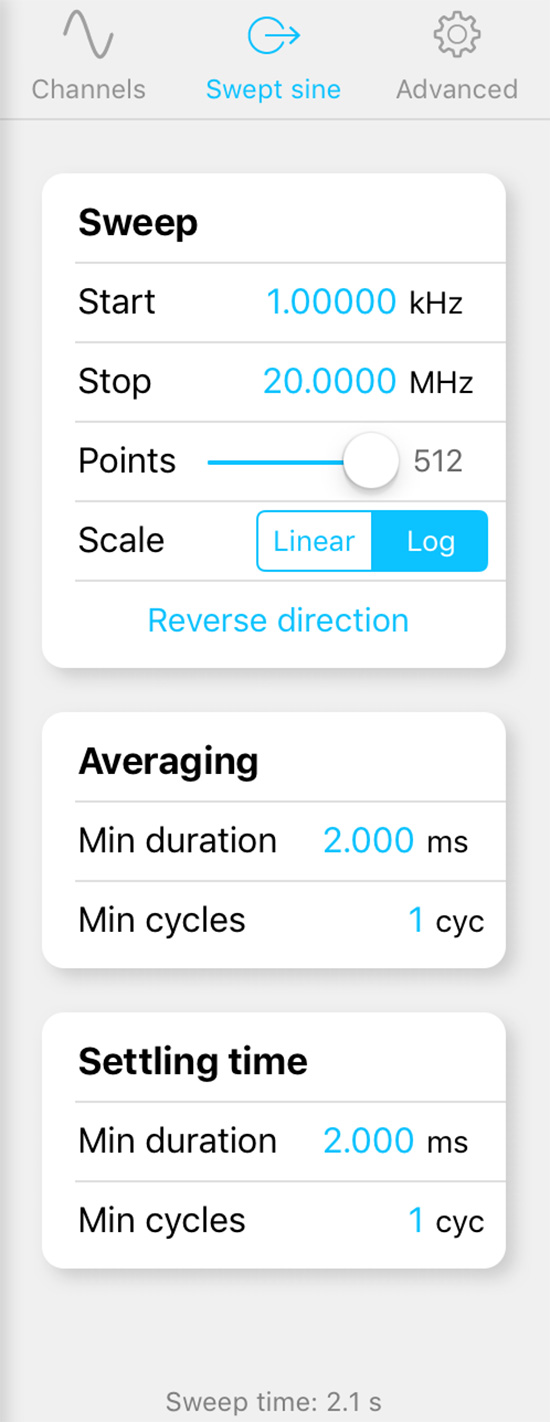

Optimize measurement quality by configuring the Frequency Response Analyzer’s output voltage level, sweep range and scale, averaging time and settling time.

Auto-calibration

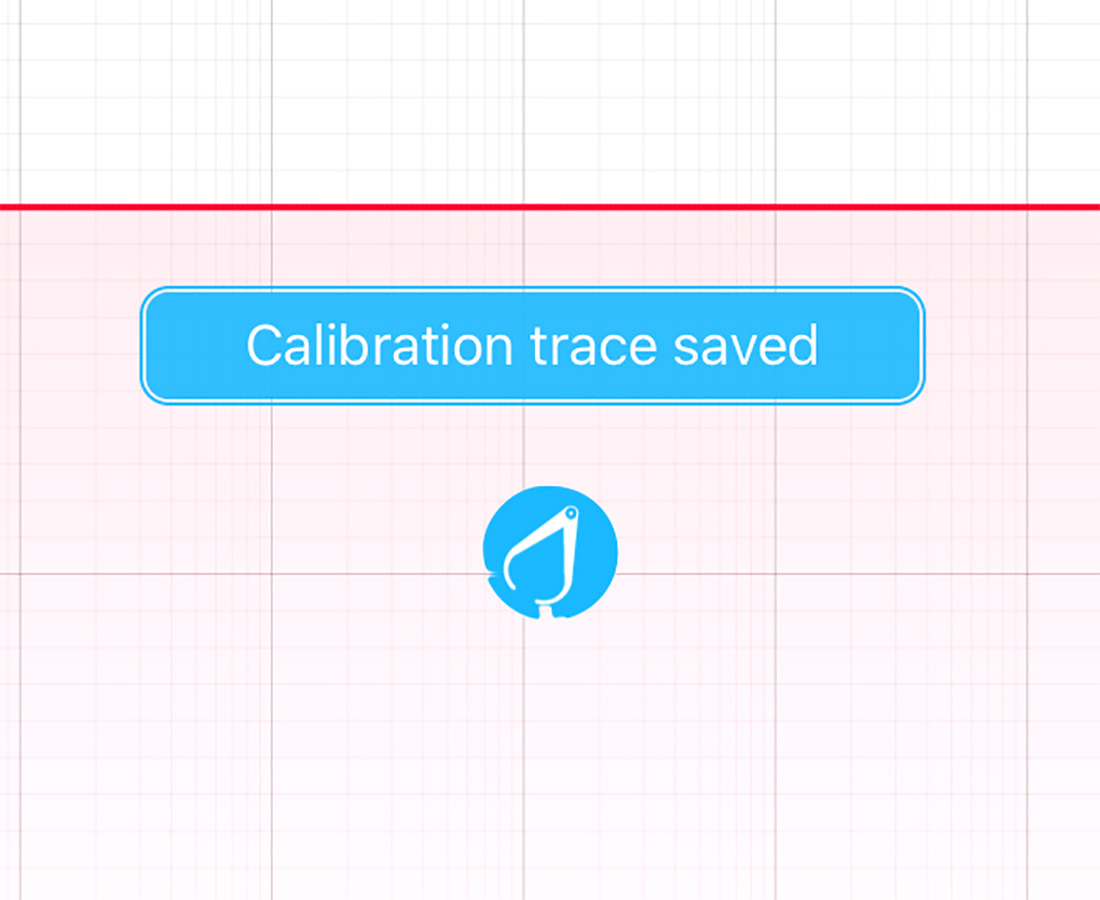

Isolate the magnitude and phase response of the system under test by calibrating out intrinsic delays and magnitude errors introduced by cables and Moku:Lab itself.
