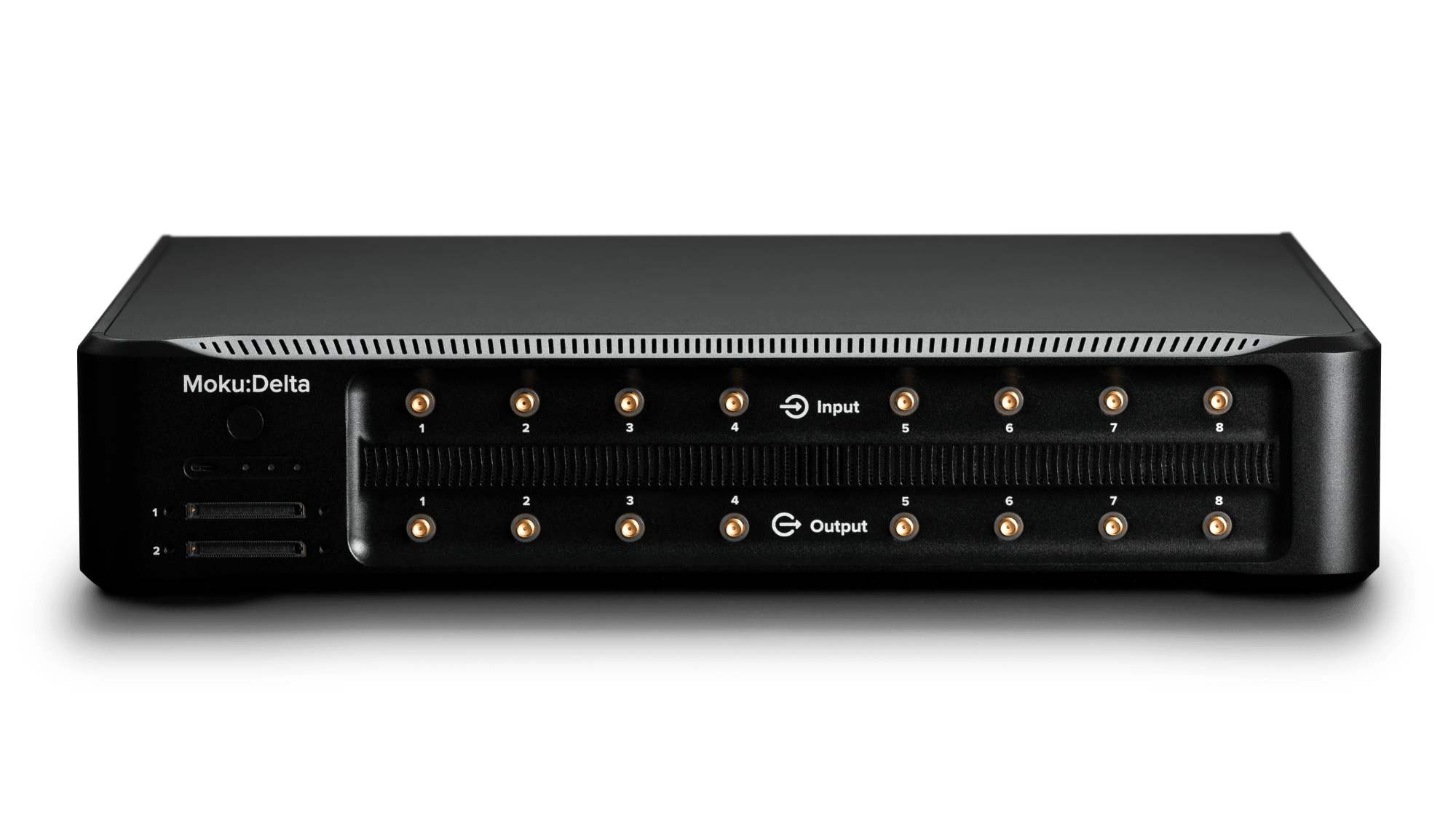

Moku:Delta

Description

Accelerate product design and validation through mixed-signal analysis, 2 GHz instantaneous bandwidth, and an ultra-low-noise, high-resolution front end. Optimize experiments by running up to 15 powerful instruments on their own, or combine up to eight to replace an entire rack of equipment with one device.

  • Inputs:Eight DC to 2 GHz, 5 GSa/s
  • Outputs:Eight DC to 2 GHz, 10 GSa/s
  • Impedance:50 Ω / 1 MΩ
  • Input coupling:AC / DC
  • Input voltage noise:Better than 10 nV/√Hz
  • Clock stability:1 ppb

More info?Explore Moku:Delta

Bundle

Start with our essential instruments and add additional ones à la carte. Or, opt for the full suite for the best value.

Instruments

Tools

Calibration

Guaranteed precision you can trust Learn More

Factory calibration

Close

Warranty & Support

Which warranty is right for you? Learn More

One year warranty

The unit is covered under the standard 1-year warranty. Turnaround time for repairs is 10 business days.

Three year warranty

The unit is covered under an extended 3-year warranty. Turnaround time for repairs is 10 business days.

Premium service package

Good for one year with the option to renew annually.

Technical Support: Access to application engineers for support via email and phone, with expedited turnaround time for responses (1 business day).

Advanced Replacement: We will provide new replacement hardware that can be shipped immediately if a repair is needed, reducing downtime on your end. Turnaround time is 1 business day plus shipping for a replacement product.

Liquid Instruments warrants its hardware products against defects in materials and workmanship from the date it is shipped to the customer. This warranty is void if the failure results from abuse, accident, misapplication, or modification by the customer.

Close

Instruments

Tools

Calibration

Guaranteed precision you can trust Learn More

Factory calibration

Close

Warranty & Support

Which warranty is right for you? Learn More

One year warranty

The unit is covered under the standard 1-year warranty. Turnaround time for repairs is 10 business days.

Three year warranty

The unit is covered under an extended 3-year warranty. Turnaround time for repairs is 10 business days.

Premium service package

Good for one year with the option to renew annually.

Technical Support: Access to application engineers for support via email and phone, with expedited turnaround time for responses (1 business day).

Advanced Replacement: We will provide new replacement hardware that can be shipped immediately if a repair is needed, reducing downtime on your end. Turnaround time is 1 business day plus shipping for a replacement product.

Liquid Instruments warrants its hardware products against defects in materials and workmanship from the date it is shipped to the customer. This warranty is void if the failure results from abuse, accident, misapplication, or modification by the customer.

Close

Arbitrary Waveform Generator

Generate custom waveforms with sample rates of up to 5 GSa/s. For maximum flexibility to generate truly arbitrary waveforms, load waveforms from a file or input them as piece-wise mathematical functions with up to 32 segments.

Learn more Download datasheet

Data Logger

Engineered for flexibility, the Moku:Pro Data Logger lets you log data directly to an SD card, a networked disk, or internal memory with sampling rates of up to 10 MSa/s. Input noise is measured at <10 nV/√Hz with 14- and 20-bit blended ADC technology, providing ultra-low-noise data logging from acoustic to RF frequencies. Moku:Delta is equipped with 10 MHz and 100 MHz clock synchronization, allowing flexible integration with other electronics.

Learn more Download datasheet

Logic Analyzer / Pattern Generator

The Moku:Delta Logic Analyzer/Pattern Generator utilizes the devices’ analog input and output ports to stimulate, monitor, capture, and debug digital systems. Use the integrated Protocol Analyzer and Pattern Generator features to enable full digital circuit design and analysis, or debug custom designs quickly and efficiently in Multi-Instrument Mode.

Learn more Download datasheet

Oscilloscope

The Moku:Delta Oscilloscope features up to four high-speed, ultra-low-noise input channels with an analog bandwidth of up to 2 GHz and a sample rate of up to 5 GSa/s. For maximum flexibility, we offer fully integrated 14-bit and 20-bit blended ADCs to cover a broad spectrum, providing class-leading input noise performance of <10 nV/√Hz with a high dynamic range. Leverage the built-in four-channel Waveform Generators to quickly produce various waveforms with a maximum bandwidth of 2 GHz.

Learn more Download datasheet

Spectrum Analyzer

Use the versatile and efficient Moku:Delta Spectrum Analyzer to observe input signals in the frequency domain between DC and 2 GHz with an ultra-low noise floor. View up to eight channels simultaneously with a resolution bandwidth as low as 618.5 mHz and a minimum span of 100 Hz. For top performance in a range of applications, the Spectrum Analyzer comes equipped with up to four built-in Waveform Generators capable of producing sine waves at up to 2 GHz.

Learn more Download datasheet

Waveform Generator

Use the highly flexible Moku:Delta Waveform Generator to generate up to four independent waveforms with a maximum bandwidth of 2 GHz. For top performance in a range of applications, select between sine, square, ramp, pulsed, noise, or DC waveform shapes. Choose from high-bandwidth modulation of phase, frequency, amplitude, or pulse width, or generate triggered bursts or sweeps from an internal or external source.

Learn more Download datasheet

Digital Filter Box

Interactively design and generate a range of infinite impulse response (IIR) filters. Select from lowpass, highpass, bandpass, and bandstop filter shapes with up to eight fully configurable filter types, including Butterworth, Chebyshev, and elliptic.

Learn more Download datasheet

FIR Filter Builder

Leverage the versatile Moku:Delta FIR Filter Builder to design and implement lowpass, highpass, bandpass, and bandstop finite impulse response (FIR) filters with up to 14,819 coefficients. It’s easy to fine-tune the filter response in the frequency and time domains to complement your specific application. For maximum flexibility, select between four frequency response shapes, five common impulse responses, and up to eight window functions.

Learn more Download datasheet

Frequency Response Analyzer

Perform multi-channel Bode analysis with up to eight inputs and outputs, including differential or ratiometric measurements. Quickly measure the frequency response or transfer function of a device under test with industry-leading noise performance and bandwidth.

Learn more Download datasheet

Laser Lock Box

The Moku:Delta Laser Lock Box enables you to lock a laser’s frequency to a reference cavity or atomic transition using high-performance modulation locking techniques. The Laser Lock Box includes a Lock Assist feature, enabling you to quickly lock to any zero crossing on the demodulated error signal. With Multi-Instrument Mode, you can deploy multiple laser lock modules simultaneously. Each module shares the same clock base from the internal or an external source. This is the ideal solution for multi-laser stabilization systems.

Learn more Download datasheet

Lock-in Amplifier

Perform dual-phase demodulation up to 2 GHz with an excellent dynamic reserve. With an easy-to-use interface, and a leading cost-per-channel in all classes, the Moku Lock-in Amplifier adapts to the evolving demands of cutting-edge scientific experiments.

Learn more Download datasheet

PID Controller

With the Moku:Delta PID Controller, it’s easy to leverage up to eight fully configurable PID controllers to simplify system feedback and stabilization. Deploy them in applications requiring both low and high feedback bandwidths, such as laser temperature and current stabilization. For maximum flexibility, you can also utilize the Moku PID Controller as a lead-lag compensator by saturating the integral and differential controllers with independent gain settings.

Learn more Download datasheet

Phasemeter

The Moku:Delta Phasemeter measures the phase, relative to a reference clock, of up to eight input signals from 1 kHz to 2 GHz. Built on a digitally implemented, phase-locked loop architecture, it provides exceptional dynamic range, zero dead time, and measurement precision that exceeds the performance of conventional lock-in amplifiers and frequency counters.

Learn more Download datasheet

Time & Frequency Analyzer

Count events with a digital resolution of 0.2 ps with the Moku:Delta Time & Frequency Analyzer. Feed configurable event detectors into up to eight ultra-precise interval analyzers to replace your frequency counter, event counter, photon counter, and more — all with one versatile instrument that offers real-time, on-device histograms and interval statistics.

Learn more Download datasheet

Moku Cloud Compile

Code, compile, and deploy directly from your browser. Moku Cloud Compile makes FPGA programming simple with the ability to implement custom functionality to your Moku device.

Learn more Download datasheet

Multi-Instrument Mode

Connect multiple software-defined instruments to build powerful signal processing pipelines with the ability to dynamically swap instruments on the fly — and monitor the performance of each instrument in its own dedicated window for a true bird’s-eye view of your experiment.

Learn more Download datasheet

Moku:Delta

Build Your Own
$60,000.00
SKU: MA-FG-AS00001 Category: Brand:
